Actions Tab

The Actions Tab displays and enables setup of Action devices for remote commands such as sending arm/disarm commands to panels that support this functionality.

Setting Up And Using An Action Device​

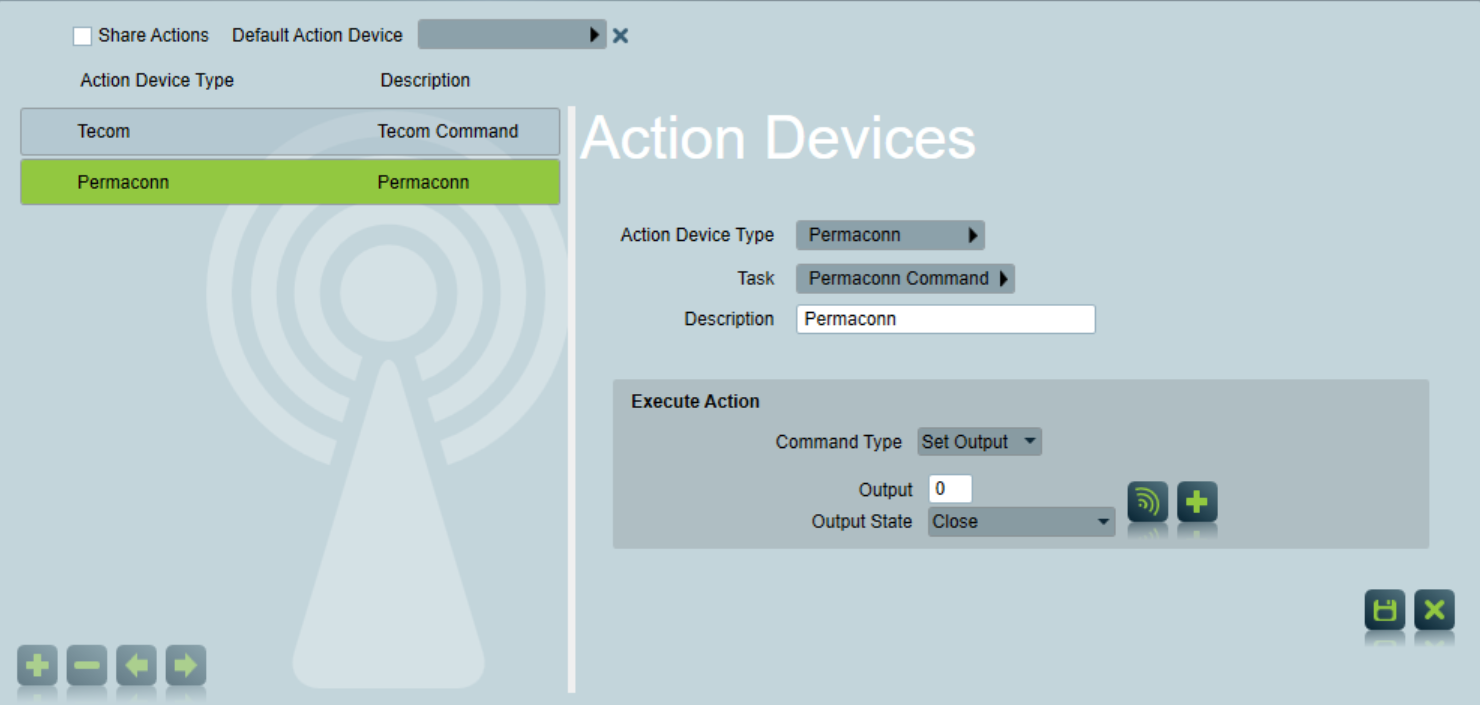

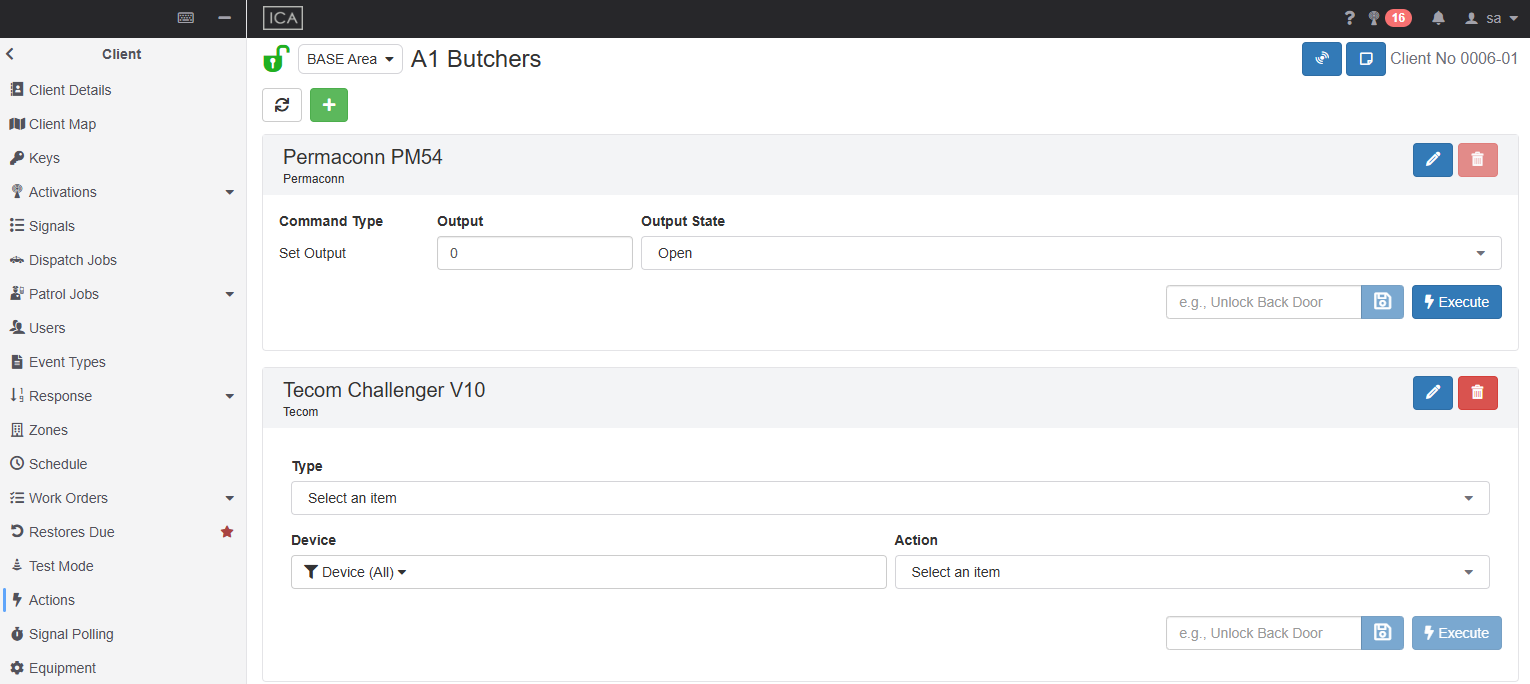

Actions Tab View with Permaconn and Tecom action devices in ICA
Actions Tab View with Permaconn and Tecom action devices in ICA

Adding A New Device​

Click the green Plus button at the top of the Actions Tab of the client area (or base area) that you wish to setup a new action device against. Complete the form with the parameters for the device type you are using.

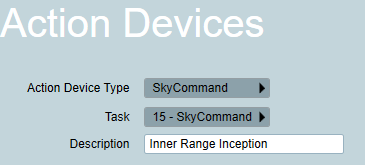

Adding a new device.
Adding a new device.

Executing One-Off Commands Or Saving For Reuse​

Within the action device item you can setup the parameters for a new action.

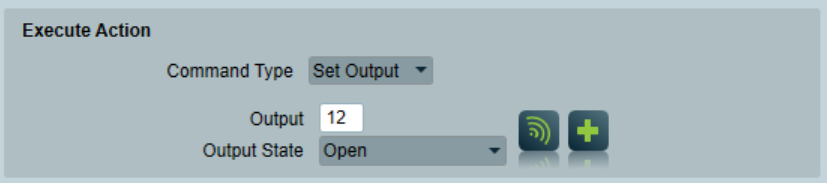

An action command setup for a Permaconn device.
An action command setup for a Permaconn device.

You can either execute this as a one-off command or save it with a label to be reused from the device item. The process of saving the action command will not automatically execute it.

Execute the action command using the set parameters.

Save the action command using the set parameters to be executed at another time.

Executing Saved Action Commands​

Saved actions will appear in the Saved Actions list bellow the action parameters.

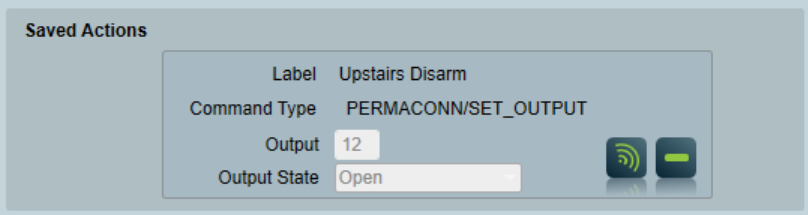

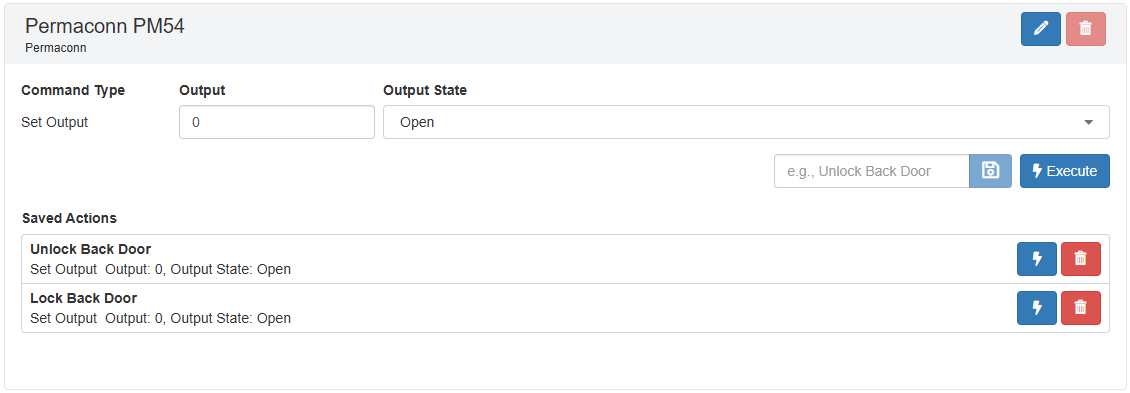

Action commands for a Permaconn device, with execute and delete options.
Action commands for a Permaconn device, with execute and delete options.

The Action Command Execute button will execute the saved action.

The Delete button will delete the saved action command; removing it from the list.

Supported Action Devices​
